StereoDepth

Supported on:RVC2RVC4
StereoDepth 节点从一对 Camera 节点的立体图像对计算视差和/或深度。

配置立体深度

学习如何通过逐步配置指南获得最佳深度结果。
打开教程
要查看精度测量，请参见 深度精度。

如何放置

Python

Python
1pipeline = dai.Pipeline()
2stereo = pipeline.create(dai.node.StereoDepth)

C++

C++
1dai::Pipeline pipeline;
2auto stereo = pipeline.create<dai::node::StereoDepth>();

输入和输出

用法

Python

Python
1pipeline = dai.Pipeline()
2stereo = pipeline.create(dai.node.StereoDepth)
3
4# 设置配置文件预设为 ROBOTICS
5stereo.setDefaultProfilePreset(dai.node.StereoDepth.PresetMode.ROBOTICS)
6# 更好处理遮挡：
7stereo.setLeftRightCheck(True)
8# 更近的最小深度，视差范围加倍：
9stereo.setExtendedDisparity(True)
10# 更远距离的更好精度，分数视差32级：
11stereo.setSubpixel(True)
12
13# 事先定义和配置 MonoCamera 节点
14left.out.link(stereo.left)
15right.out.link(stereo.right)

C++

C++
1dai::Pipeline pipeline;
2auto stereo = pipeline.create<dai::node::StereoDepth>();
3
4// 设置配置文件预设为 ROBOTICS
5stereo->setDefaultProfilePreset(dai::node::StereoDepth::PresetMode::ROBOTICS);
6// 更好处理遮挡：
7stereo->setLeftRightCheck(true);
8// 更近的最小深度，视差范围加倍：
9stereo->setExtendedDisparity(true);
10// 更远距离的更好精度，分数视差32级：
11stereo->setSubpixel(true);
12
13// 事先定义和配置 MonoCamera 节点
14left->out.link(stereo->left);
15right->out.link(stereo->right);

功能示例

深度对齐

图像对齐用于将深度图对齐到特定流。对于 Depthai v3，默认的立体深度对齐方式是 RECTIFIED_LEFT。
Python
1pipeline = dai.Pipeline()
2stereo = pipeline.create(dai.node.StereoDepth)
3 # alignment to RECTIFIED_LEFT or RECTIFIED_RIGHT
4stereo.setDepthAlign(dai.StereoDepthConfig.AlgorithmControl.DepthAlign.RECTIFIED_LEFT)
或者，您可以使用以下 ImageAlign 节点：
Python
1align = pipeline.create(dai.node.ImageAlign)
2stereo.depth.link(align.input)
3rgbOut.link(align.inputAlignTo)  # Align depth to RGB
4align.outputAligned.link(sync.inputs["depth_aligned"])

为高帧率配置相机

Stereo 节点的性能直接受 MonoCamera 配置的限制。要使用 StereoDepth 实现高帧率（例如 60 FPS），必须将 MonoCameras 配置为按所需速率提供帧。
Python
1with dai.Pipeline(device) as pipeline:
2  stereo = pipeline.create(dai.node.StereoDepth)
3  mono_left = pipeline.create(dai.node.Camera).build(dai.CameraBoardSocket.CAM_B)
4  mono_right = pipeline.create(dai.node.Camera).build(dai.CameraBoardSocket.CAM_C)
5
6  def configure_cam(cam, size_x: int, size_y: int, fps: float):
7    cap = dai.ImgFrameCapability()
8    cap.size.fixed((size_x, size_y))
9    cap.fps.fixed(fps)
10  return cam.requestOutput(cap, True)
11
12  # Configure MonoCameras for 60 FPS at 640x400
13  mono_left_out = configure_cam(mono_left, 640, 400, 60)
14  mono_right_out = configure_cam(mono_right, 640, 400, 60)
从处理角度来看，在没有 MonoCamera 输入限制的情况下，Stereo 节点本身能够在 256×256 像素输入上以高达 400 FPS 的速率处理图像对。但是，默认情况下，MonoCameras 以 30 FPS 运行，从而相应地限制了整体 StereoDepth 输出。

在运行时更改相机标定

可以在运行时更改相机标定。可以使用 device.setCalibration() 方法更改标定，并且可以与 动态标定 结合使用，如果设备立体质量因环境因素随时间下降。可以使用 device.getCalibration() 获取相同的数据。

平台特定配置

选择您的平台（RVC2 或 RVC4）以查看特定平台的文档、预设、配置选项和限制。

RVC2

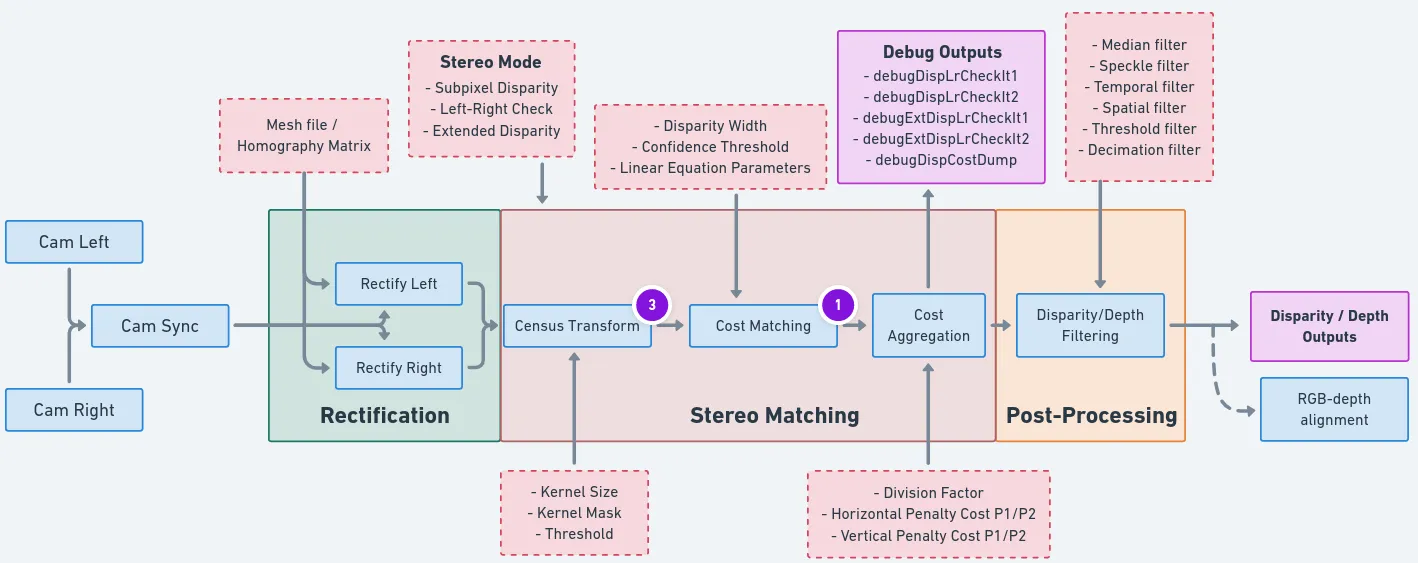

Internal block diagram of StereoDepth node

software/depthai/nodes//depth_diagram.webp

Depth Presets

We have made a few depth presets that can be used to quickly set up the StereoDepth node for different scenarios, without having to manually set all the parameters. For detailed preset specifications including all parameter values, see Configuring stereo depth.
Stereo depth presetUse caseFPS @800PFPS @400POutput resolutionMotion BlurRange (meters)
DefaultGeneral purpose16301/2 Input ResolutionTrue0–10
FaceFace tracking, biometrics16301/2 Input ResolutionTrue0–3
High Detail3D scanning, object details16301/2 Input ResolutionTrue0–15
RoboticsNavigation, obstacle detection16341/2 Input ResolutionFalse0–15
Fast AccuracyGeneral purpose3090Input ResolutionFalse0–65
Fast DensityGeneral purpose3090Input ResolutionFalse0–65
Fast Density No SubpixelGeneral purpose50110Input ResolutionFalse0–65
Output resolution can get reduced by half due to the use of decimation filter, meaning that if the input resolution is 1280x800 (800P), it would get reduced to 640x400 (400P). For some Depth Presets, the output resolution can be different due to the use of decimation filter. By default, all profile presets have subpixel ON, this produces much finer depth details but leads to lower FPS. For high FPS, turn subpixel OFF. Profile Presets High Detail and Face have by default Extended disparity ON.

Depth Configuration

Extended Disparity

Extended disparity mode allows detecting closer distance objects for the given baseline. This increases the maximum disparity search from 96 to 191, meaning the range is now: [0..190].
  1. Computes disparity on the original size images (e.g. 1280x720).
  2. Computes disparity on 2x downscaled images (e.g. 640x360).
  3. Combines the two level disparities on Shave, effectively covering a total disparity range of 191 pixels (in relation to the original resolution).
You can use debugExtDispLrCheckIt1 and debugExtDispLrCheckIt2 debug outputs for debugging/fine-tuning purposes.

Usage:

Python
1stereo.setExtendedDisparity(True)
Note: On RVC2, companding (costMatching.enableCompanding) is an alternative to Extended Disparity: with companding the stereo block uses sparse matching so the disparity range extends to 176 values, meaning the range is [0..175]. Matching is dense (pixel-by-pixel) for the first part of the range and progressively sparser (every 2nd, then every 4th pixel) for higher disparities, and only the depth output uses this extended range—the disparity map itself stays in the normal range.

Subpixel Disparity

Subpixel mode improves the precision and is especially useful for long-range measurements. It also helps for better estimating surface normals.In this mode, stereo cameras perform: 94 depth steps * 8 subpixel depth steps + 2 (min/max values) = 754 depth steps.The number of unique depth values depends on the subpixel fractional bits setting:
Subpixel Fractional BitsNumber of Unique Values
3754
41506
53010

Usage:

Python
1stereo.setSubpixel(True)
2stereo.initialConfig.setSubpixelFractionalBits(3)  # 3, 4 or 5

LR Check

Left-Right Check or LR-Check is used to remove incorrectly calculated disparity pixels due to occlusions at object borders (Left and Right camera views are slightly different).
  1. Computes disparity by matching in R->L direction.
  2. Computes disparity by matching in L->R direction.
  3. Combines results from steps 1 and 2, running on Shave: each pixel d = disparity_LR(x,y) is compared with disparity_RL(x-d,y). If the difference is above a threshold, the pixel at (x,y) in the final disparity map is invalidated.
You can use debugDispLrCheckIt1 and debugDispLrCheckIt2 debug outputs for debugging/fine-tuning purposes.LR check threshold: Disparity is considered for the output when the difference between LR and RL disparities is smaller than the LR check threshold.

Usage:

Python
1stereo.setLeftRightCheck(True)
2stereo.initialConfig.setLeftRightCheckThreshold(4)  # Set threshold value

Confidence Threshold

Confidence threshold: Stereo depth algorithm searches for the matching feature from the right camera point to the left image (along the 96 disparity levels). During this process, it computes the cost for each disparity level and chooses the minimal cost between two disparities and uses it to compute the confidence at each pixel. Stereo node will output disparity/depth pixels only where depth confidence is below the confidence threshold (lower the confidence value means better depth accuracy).The confidence score is inverted:
  • 0 - maximum confidence that it holds a valid value
  • 255 - minimum confidence, so there is more chance that the value is incorrect

Usage:

Python
1stereo.initialConfig.setConfidenceThreshold(200)  # Lower value = better accuracy, less fill rate

Median Filter

This is a non-edge preserving Median filter, which can be used to reduce noise and smoothen the depth map. Median filter is implemented in hardware, so it's the fastest filter.Note: Median filtering is disabled when subpixel mode is set to 4 or 5 bits.

Usage:

Python
1stereo.initialConfig.setMedianFilter(dai.MedianFilter.KERNEL_7x7)  # Options: MEDIAN_OFF, KERNEL_3x3, KERNEL_5x5, KERNEL_7x7

Speckle Filter

Speckle Filter is used to reduce the speckle noise. Speckle noise is a region with huge variance between neighboring disparity/depth pixels, and speckle filter tries to filter this region.

Usage:

Python
1stereo.initialConfig.postProcessing.speckleFilter.enable = True
2stereo.initialConfig.postProcessing.speckleFilter.speckleRange = 48

Temporal Filter

Temporal Filter is intended to improve the depth data persistency by manipulating per-pixel values based on previous frames. The filter performs a single pass on the data, adjusting the depth values while also updating the tracking history.In cases where the pixel data is missing or invalid, the filter uses a user-defined persistency mode to decide whether the missing value should be improved with stored data. Note that due to its reliance on historic data, the filter may introduce visible motion blurring/smearing artifacts, and therefore is best-suited for static scenes.

Usage:

Python
1stereo.initialConfig.postProcessing.temporalFilter.enable = True
2stereo.initialConfig.postProcessing.temporalFilter.alpha = 0.4  # Weight of current frame (0-1)
3stereo.initialConfig.postProcessing.temporalFilter.delta = 3  # Threshold for valid depth change

Spatial Filter

Spatial Edge-Preserving Filter will fill invalid depth pixels with valid neighboring depth pixels. It performs a series of 1D horizontal and vertical passes or iterations, to enhance the smoothness of the reconstructed data. It is based on this research paper.

Usage:

Python
1stereo.initialConfig.postProcessing.spatialFilter.enable = True
2stereo.initialConfig.postProcessing.spatialFilter.alpha = 0.5  # Edge-preserving strength
3stereo.initialConfig.postProcessing.spatialFilter.delta = 8  # Threshold for valid depth change
4stereo.initialConfig.postProcessing.spatialFilter.holeFillingRadius = 2  # Radius for hole filling
5stereo.initialConfig.postProcessing.spatialFilter.numIterations = 1  # Number of iterations

Brightness Filter

Brightness filter will filter out (invalidate, by setting to 0) all depth pixels for which input stereo camera image pixels are outside the configured min/max brightness threshold values. This filter is useful when you have a high dynamic range scene, like outside on a bright day, or in general whenever stereo camera pair can directly see a light source.It also helps with rectification "artifacts", especially when you have Wide FOV lenses and you apply alpha param.

Usage:

Python
1stereo.initialConfig.postProcessing.brightnessFilter.enable = True
2stereo.initialConfig.postProcessing.brightnessFilter.minBrightness = 0  # Minimum brightness threshold
3stereo.initialConfig.postProcessing.brightnessFilter.maxBrightness = 255  # Maximum brightness threshold

Threshold Filter

Threshold filter will filter out all depth pixels outside the configured min/max threshold values. In a controlled environment, where you know exactly how far the scene can be (eg. 30cm - 2m) it's advised to use this filter.

Usage:

Python
1stereo.initialConfig.postProcessing.thresholdFilter.minRange = 0  # Minimum depth in cm
2stereo.initialConfig.postProcessing.thresholdFilter.maxRange = 200  # Maximum depth in cm

Decimation Filter

Decimation Filter will sub-sample the depth map, which means it reduces the depth scene complexity and allows other filters to run faster. Setting decimationFactor to 2 will downscale 1280x800 depth map to 640x400. We can either select pixel skipping, median, or mean decimation mode, and the latter two modes help with filtering as well. decimationFactor 1 disables the filter.

Usage:

Python
1stereo.initialConfig.postProcessing.decimationFilter.decimationFactor = 2  # 1 = disabled, 2 = 2x downscale, etc.

Filtering Order

The order of the filters is important, as the output of one filter is the input of the next filter. The order of the filters is customizable:Usage:
Python
1config.postProcessing.filteringOrder = [
2    dai.RawStereoDepthConfig.PostProcessing.Filter.TEMPORAL,
3    dai.RawStereoDepthConfig.PostProcessing.Filter.SPECKLE,
4    dai.RawStereoDepthConfig.PostProcessing.Filter.SPATIAL,
5    dai.RawStereoDepthConfig.PostProcessing.Filter.MEDIAN,
6    dai.RawStereoDepthConfig.PostProcessing.Filter.DECIMATION
7]
8stereo.initialConfig.set(config)

Limitations

  • Median filtering is disabled when subpixel mode is set to 4 or 5 bits.
  • For RGB-depth alignment the RGB camera has to be placed on the same horizontal line as the stereo camera pair.
  • RGB-depth alignment doesn't work when using disparity shift.

RVC4

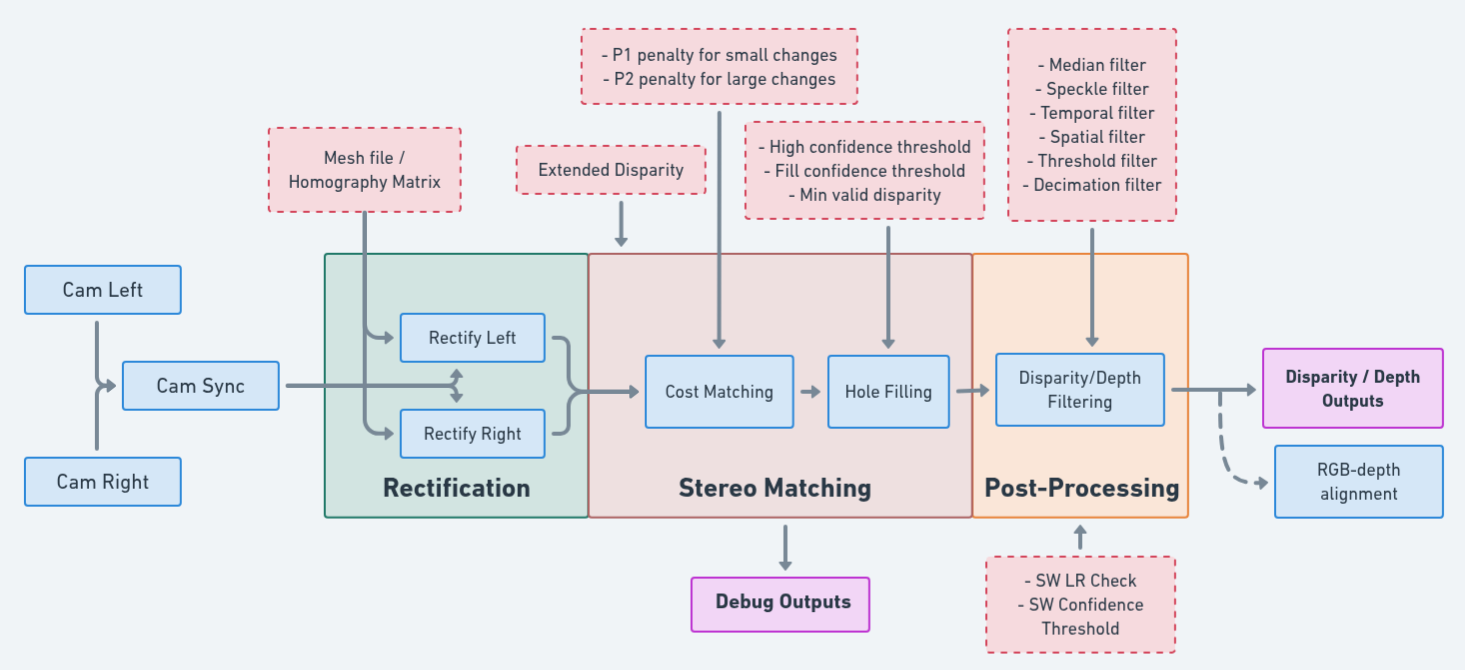

StereoDepth 节点内部框图

StereoDepth 内部框图（RVC4）

深度预设

我们提供了一些深度预设，可用于快速配置 StereoDepth 节点以适应不同场景，而无需手动设置所有参数。有关详细的预设规格（包括所有参数值），请参阅 配置立体深度。
立体深度预设使用场景FPS @800PFPS @400P输出分辨率运动模糊范围（米）
快速精度通用6060输入分辨率False0–65
快速密集通用3660输入分辨率False0–65

深度配置

扩展视差

扩展视差模式允许针对给定基线检测更近的物体。这会将最大视差搜索范围从 64 增加到 128，即范围变为：[0..127]。
  1. 在原始尺寸图像（例如 1280×800）上计算视差。
  2. 在 2 倍缩小图像（例如 640×400）上计算视差。
  3. 合并两个层级的视差。

用法：

Python
1stereo.setExtendedDisparity(True)

亚像素视差

亚像素模式可提高视差精度，特别适用于远距离深度测量。 它还能更准确地估算表面法线。在 RVC4 上，亚像素处理默认启用且无法禁用，因为它在硬件层面固定。 该实现使用 4 个小数位。

左右校验

左右校验（LR-Check）用于移除因物体边界处遮挡（左右相机视图略有不同）而导致的错误计算视差像素。在 RVC4 上，左右校验完全在 CPU 上的软件中运行。左右校验阈值：像素间允许的最大视差差异。较小的值会导致更稀疏的深度（更多像素被无效化）。

用法：

Python
1stereo.initialConfig.algorithmControl.enableSwLeftRightCheck = True
2stereo.initialConfig.algorithmControl.leftRightCheckThreshold = 10  # 设置阈值
注意：RVC4 有一种不同的内部机制，本质上实现了左右校验功能——即遮挡置信度权重（请参见下面的置信度指标部分）。遮挡置信度权重通过比较从左到右和从右到左搜索得出的视差差异，这基本上就是左右校验所做的。

软件置信度

软件置信度滤波器获取视差和置信度图（来自立体硬件的每像素 8 位置信度），并应用阈值过滤掉低置信度像素。 该过滤在 CPU 上执行，并在硬件块生成视差后应用。该过滤在 CPU 上执行，并在硬件块生成视差后应用。 当启用了左右（LR）校验时，左→右和右→左视差（及其对应的置信度图）都将使用相同的阈值进行无效化。数值：
  • 轻度过滤：50–100
  • 中等过滤：200
  • 重度过滤：>200（非常依赖场景）

用法：

Python
1stereo.initialConfig.costMatching.enableSwConfidenceThresholding = True
2stereo.initialConfig.costMatching.confidenceThreshold = 200  # 根据所需过滤级别调整

置信度指标（遮挡、运动向量、平坦度）

使用三种不同指标计算置信度图，最终将三者相加得到一张综合置信度图。
  • 遮挡置信度权重
    • 基本上执行左右校验。比较从左到右和从右到左搜索（前向/后向运动向量一致性）得到的视差差异。
  • 运动向量（MV）置信度权重
    • MV 方差计算每个像素局部边缘感知窗口内的方差；给定约束条件，确保同一物体内深度平滑且一致。
    • MV 置信度阈值：MV 方差的阈值偏移。有效范围为 [0,3]。值为 0 允许最大方差。
  • 平坦度置信度权重
    • 平坦度考虑输入图像纹理，并屏蔽掉相邻特征过于相似的低纹理区域。可通过平坦度阈值调整所需的最小纹理量。
    • 平坦度阈值：平坦区域检查的阈值。该值越高，基于 Census 特征比较，像素越容易被检测为平坦区域。用于没有足够匹配特征的低纹理区域。
    • 平坦度覆盖：如果像素被检测为平坦区域，则将置信度设为零。

使用方法：

Python
1# 置信度度量权重（RVC4 必须总和为 32）
2stereo.initialConfig.confidenceMetrics.occlusionConfidenceWeight = 12
3stereo.initialConfig.confidenceMetrics.motionVectorConfidenceWeight = 10
4stereo.initialConfig.confidenceMetrics.flatnessConfidenceWeight = 10
5
6# 阈值
7stereo.initialConfig.confidenceMetrics.motionVectorConfidenceThreshold = 1  # 有效范围 [0,3]
8stereo.initialConfig.confidenceMetrics.flatnessConfidenceThreshold = 5
9stereo.initialConfig.confidenceMetrics.flatnessOverride = True  # 若为平坦区域，则将置信度设为 0
注意：对于 RVC4，置信度度量权重必须总和为 32。

自适应中值滤波

自适应中值滤波仅对低于指定阈值的低置信度像素应用滤波。自适应中值滤波阈值：仅对低于此阈值的低置信度像素应用滤波。该阈值应小于空洞填充中的填充置信度阈值。

使用方法：

Python
1stereo.initialConfig.postProcessing.adaptiveMedianFilter.enable = True
2stereo.initialConfig.postProcessing.adaptiveMedianFilter.confidenceThreshold = 200  # 应小于空洞填充的 fillConfidenceThreshold

空洞填充

空洞填充是一种后处理滤波，通过将像素分组为超像素（六边形区域）并基于这些区域内的高置信度像素计算视差值，来填补深度图中的空洞。该滤波会修改置信度图以标记填充区域。滤波的工作方式如下：
  1. 将像素分组为超像素（六边形区域）
  2. 使用置信度高于高置信度阈值的像素计算每个超像素的视差值
  3. 根据填充置信度阈值和最小有效视差要求填补空洞
参数：
  • 高置信度阈值 — 置信度高于此阈值的像素用于计算每个超像素的视差值。若设为最大值（255），则不应形成任何超像素。
  • 填充置信度阈值 — 置信度低于此值的像素将被滤除（如果 invalidateDisparities 设为 True）或参与超像素计算。
  • 最小有效视差 — 决定一个区域内需要有多少比例的像素置信度高于高置信度阈值，才能被纳入超像素的视差计算。取值：1（50%）、2（25%）或 3（12.5%）。最小有效视差越大，超像素越大（六边形越多）。
  • 使视差无效 — 若设为 True，则最终视差图中低于填充置信度阈值的像素将被滤除。

使用方法：

Python
1stereo.initialConfig.postProcessing.holeFilling.enable = True
2stereo.initialConfig.postProcessing.holeFilling.highConfidenceThreshold = 200
3stereo.initialConfig.postProcessing.holeFilling.fillConfidenceThreshold = 210
4stereo.initialConfig.postProcessing.holeFilling.minValidDisparity = 1  # 1、2 或 3
5stereo.initialConfig.postProcessing.holeFilling.invalidateDisparities = True

中值滤波

这是一种非边缘保留的中值滤波，可用于减少噪声并平滑深度图。在 RVC4 上：中值滤波由软件（CPU）实现，仅支持 3x3 或 5x5 核大小。若请求 7x7，会自动降级为 5x5。

使用方法：

Python
1stereo.initialConfig.setMedianFilter(dai.MedianFilter.KERNEL_3x3)  # 选项：MEDIAN_OFF、KERNEL_3x3、KERNEL_5x5

斑点滤波

斑点滤波用于减少斑点噪声。斑点噪声是指相邻视差/深度像素之间方差很大的区域，斑点滤波试图滤除该区域。

使用方法：

Python
1stereo.initialConfig.postProcessing.speckleFilter.enable = True
2stereo.initialConfig.postProcessing.speckleFilter.speckleRange = 48

时域滤波

时域滤波旨在通过基于先前帧操纵每个像素的值来提高深度数据的持久性。该滤波对数据进行单次遍历，调整深度值，同时更新跟踪历史记录。在像素数据缺失或无效的情况下，滤波使用用户定义的持久性模式来决定是否应使用存储的数据改善缺失值。请注意，由于依赖历史数据，该滤波可能会引入明显的运动模糊/拖影伪影，因此最适合静态场景。

使用方法：

Python
1stereo.initialConfig.postProcessing.temporalFilter.enable = True
2stereo.initialConfig.postProcessing.temporalFilter.alpha = 0.4  # 当前帧的权重（0-1）
3stereo.initialConfig.postProcessing.temporalFilter.delta = 3  # 有效深度变化的阈值

空间滤波

空间边缘保留滤波会用有效的相邻深度像素填充无效的深度像素。它执行一系列一维水平或垂直的遍历或迭代，以增强重建数据的平滑度。该滤波基于这篇研究论文。

用法：

Python
1stereo.initialConfig.postProcessing.spatialFilter.enable = True
2stereo.initialConfig.postProcessing.spatialFilter.alpha = 0.5  # 边缘保持强度
3stereo.initialConfig.postProcessing.spatialFilter.delta = 8  # 有效深度变化阈值
4stereo.initialConfig.postProcessing.spatialFilter.holeFillingRadius = 2  # 空洞填充半径
5stereo.initialConfig.postProcessing.spatialFilter.numIterations = 1  # 迭代次数

亮度滤波器

亮度滤波器会滤除（无效化，通过设置为 0）所有输入立体相机图像像素超出配置的最小/最大亮度阈值的深度像素。当场景具有高动态范围（如晴天户外）或立体相机对直接看到光源时，该滤波器非常有用。它还有助于消除校正"伪影"，尤其是在使用广角镜头并应用 alpha 参数时。

用法：

Python
1stereo.initialConfig.postProcessing.brightnessFilter.enable = True
2stereo.initialConfig.postProcessing.brightnessFilter.minBrightness = 0  # 最小亮度阈值
3stereo.initialConfig.postProcessing.brightnessFilter.maxBrightness = 255  # 最大亮度阈值

阈值滤波器

阈值滤波器会滤除所有超出配置的最小/最大阈值的深度像素。在受控环境中，如果能精确知道场景距离范围（例如 30 厘米 - 2 米），建议使用此滤波器。

用法：

Python
1stereo.initialConfig.postProcessing.thresholdFilter.minRange = 0  # 最小深度（厘米）
2stereo.initialConfig.postProcessing.thresholdFilter.maxRange = 200  # 最大深度（厘米）

降采样滤波器

降采样滤波器会对深度图进行子采样，从而降低深度场景复杂度，使其他滤波器运行更快。将 decimationFactor 设置为 2 会将 1280x800 的深度图缩小为 640x400。我们可以选择像素跳跃、中值或均值降采样模式，后两种模式也有助于滤波。decimationFactor = 1 时禁用滤波器。

用法：

Python
1stereo.initialConfig.postProcessing.decimationFilter.decimationFactor = 2  # 1 = 禁用，2 = 2 倍降采样，以此类推

滤波顺序

滤波器的顺序很重要，因为前一个滤波器的输出是后一个滤波器的输入。滤波器的顺序是可定制的：

用法：

Python
1config.postProcessing.filteringOrder = [
2    dai.RawStereoDepthConfig.PostProcessing.Filter.TEMPORAL,
3    dai.RawStereoDepthConfig.PostProcessing.Filter.SPECKLE,
4    dai.RawStereoDepthConfig.PostProcessing.Filter.SPATIAL,
5    dai.RawStereoDepthConfig.PostProcessing.Filter.MEDIAN,
6    dai.RawStereoDepthConfig.PostProcessing.Filter.DECIMATION
7]
8stereo.initialConfig.set(config)

限制

  • 中值滤波器：在 RVC4 上，中值滤波器由软件（CPU）实现，仅支持 3x3 或 5x5 内核尺寸。如果请求 7x7，会自动降级为 5x5。
  • 亚像素：在 RVC4 上固定为 4 位（无法更改为 3 或 5 位）。
  • LR 检查：完全由 CPU 上的软件运行（不像 RVC2 那样由硬件加速）。

参考

class

dai::node::StereoDepth

#include StereoDepth.hpp
variable
std::shared_ptr< StereoDepthConfig > initialConfig
Initial config to use for StereoDepth.
variable
Input inputConfig
Input StereoDepthConfig message with ability to modify parameters in runtime.
variable
Input inputAlignTo
Input align to message. Default queue is non-blocking with size 1.
variable
Input left
Input for left ImgFrame of left-right pair
variable
Input right
Input for right ImgFrame of left-right pair
variable
Output depth
Outputs ImgFrame message that carries RAW16 encoded (0..65535) depth data in depth units (millimeter by default).Non-determined / invalid depth values are set to 0
variable
Output disparity
Outputs ImgFrame message that carries RAW8 / RAW16 encoded disparity data: RAW8 encoded (0..95) for standard mode; RAW8 encoded (0..190) for extended disparity mode; RAW16 encoded for subpixel disparity mode:
  • 0..760 for 3 fractional bits (by default)
  • 0..1520 for 4 fractional bits
  • 0..3040 for 5 fractional bits
variable
Output syncedLeft
Passthrough ImgFrame message from 'left' Input.
variable
Output syncedRight
Passthrough ImgFrame message from 'right' Input.
variable
Output rectifiedLeft
Outputs ImgFrame message that carries RAW8 encoded (grayscale) rectified frame data.
variable
Output rectifiedRight
Outputs ImgFrame message that carries RAW8 encoded (grayscale) rectified frame data.
variable
Output outConfig
Outputs StereoDepthConfig message that contains current stereo configuration.
variable
Output debugDispLrCheckIt1
Outputs ImgFrame message that carries left-right check first iteration (before combining with second iteration) disparity map. Useful for debugging/fine tuning.
variable
Output debugDispLrCheckIt2
Outputs ImgFrame message that carries left-right check second iteration (before combining with first iteration) disparity map. Useful for debugging/fine tuning.
variable
Output debugExtDispLrCheckIt1
Outputs ImgFrame message that carries extended left-right check first iteration (downscaled frame, before combining with second iteration) disparity map. Useful for debugging/fine tuning.
variable
Output debugExtDispLrCheckIt2
Outputs ImgFrame message that carries extended left-right check second iteration (downscaled frame, before combining with first iteration) disparity map. Useful for debugging/fine tuning.
variable
Output debugDispCostDump
Outputs ImgFrame message that carries cost dump of disparity map. Useful for debugging/fine tuning.
variable
Output confidenceMap
Outputs ImgFrame message that carries RAW8 confidence map. Lower values mean lower confidence of the calculated disparity value. RGB alignment, left-right check or any postprocessing (e.g., median filter) is not performed on confidence map.
function
StereoDepth()
inline function
std::shared_ptr< StereoDepth > build(Node::Output & left, Node::Output & right, PresetMode presetMode)
function
std::shared_ptr< StereoDepth > build(bool autoCreateCameras, PresetMode presetMode, const std::pair< int, int > & size, std::optional< float > fps)
Create StereoDepth node. Note that this API is global and if used autocreated cameras can't be reused.
Parameters
  • autoCreateCameras: If true, will create left and right nodes if they don't exist
  • presetMode: Preset mode for stereo depth
function
void loadMeshFiles(const std::filesystem::path & pathLeft, const std::filesystem::path & pathRight)
Specify local filesystem paths to the mesh calibration files for 'left' and 'right' inputs.When a mesh calibration is set, it overrides the camera intrinsics/extrinsics matrices. Overrides useHomographyRectification behavior. Mesh format: a sequence of (y,x) points as 'float' with coordinates from the input image to be mapped in the output. The mesh can be subsampled, configured by With a 1280x800 resolution and the default (16,16) step, the required mesh size is:width: 1280 / 16 + 1 = 81height: 800 / 16 + 1 = 51
function
void loadMeshData(const std::vector< std::uint8_t > & dataLeft, const std::vector< std::uint8_t > & dataRight)
Specify mesh calibration data for 'left' and 'right' inputs, as vectors of bytes. Overrides useHomographyRectification behavior. See
function
void setMeshStep(int width, int height)
Set the distance between mesh points. Default: (16, 16)
function
void setInputResolution(int width, int height)
Specify input resolution sizeOptional if MonoCamera exists, otherwise necessary
function
void setInputResolution(const std::tuple< int, int > & resolution)
Specify input resolution sizeOptional if MonoCamera exists, otherwise necessary
function
void setOutputSize(int width, int height)
Specify disparity/depth output resolution size, implemented by scaling.Currently only applicable when aligning to RGB camera
function
void setOutputKeepAspectRatio(bool keep)
Specifies whether the frames resized by
function
void setDepthAlign(Properties::DepthAlign align)
Parameters
  • align: Set the disparity/depth alignment: centered (between the 'left' and 'right' inputs), or from the perspective of a rectified output stream
function
void setDepthAlign(CameraBoardSocket camera)
Parameters
  • camera: Set the camera from whose perspective the disparity/depth will be aligned
function
void setRectification(bool enable)
Rectify input images or not.
function
void setLeftRightCheck(bool enable)
Computes and combines disparities in both L-R and R-L directions, and combine them.For better occlusion handling, discarding invalid disparity values
function
void setSubpixel(bool enable)
Computes disparity with sub-pixel interpolation (3 fractional bits by default).Suitable for long range. Currently incompatible with extended disparity
function
void setSubpixelFractionalBits(int subpixelFractionalBits)
Number of fractional bits for subpixel mode. Default value: 3. Valid values: 3,4,5. Defines the number of fractional disparities: 2^x. Median filter postprocessing is supported only for 3 fractional bits.
function
void setExtendedDisparity(bool enable)
Disparity range increased from 0-95 to 0-190, combined from full resolution and downscaled images.Suitable for short range objects. Currently incompatible with sub-pixel disparity
function
void setRectifyEdgeFillColor(int color)
Fill color for missing data at frame edges
Parameters
  • color: Grayscale 0..255, or -1 to replicate pixels
function
void setRuntimeModeSwitch(bool enable)
Enable runtime stereo mode switch, e.g. from standard to LR-check. Note: when enabled resources allocated for worst case to enable switching to any mode.
function
void setNumFramesPool(int numFramesPool)
Specify number of frames in pool.
Parameters
  • numFramesPool: How many frames should the pool have
function
void setPostProcessingHardwareResources(int numShaves, int numMemorySlices)
Specify allocated hardware resources for stereo depth. Suitable only to increase post processing runtime.
Parameters
  • numShaves: Number of shaves.
  • numMemorySlices: Number of memory slices.
function
void setDefaultProfilePreset(PresetMode mode)
Sets a default preset based on specified option.
Parameters
  • mode: Stereo depth preset mode
function
void useHomographyRectification(bool useHomographyRectification)
Use 3x3 homography matrix for stereo rectification instead of sparse mesh generated on device. Default behaviour is AUTO, for lenses with FOV over 85 degrees sparse mesh is used, otherwise 3x3 homography. If custom mesh data is provided through loadMeshData or loadMeshFiles this option is ignored.
Parameters
  • useHomographyRectification: true: 3x3 homography matrix generated from calibration data is used for stereo rectification, can't correct lens distortion. false: sparse mesh is generated on-device from calibration data with mesh step specified with setMeshStep (Default: (16, 16)), can correct lens distortion. Implementation for generating the mesh is same as opencv's initUndistortRectifyMap function. Only the first 8 distortion coefficients are used from calibration data.
function
void enableDistortionCorrection(bool enableDistortionCorrection)
Equivalent to useHomographyRectification(!enableDistortionCorrection)
function
void setFrameSync(bool enableFrameSync)
Whether to enable frame syncing inside stereo node or not. Suitable if inputs are known to be synced.
function
void setBaseline(float baseline)
Override baseline from calibration. Used only in disparity to depth conversion. Units are centimeters.
function
void setFocalLength(float focalLength)
Override focal length from calibration. Used only in disparity to depth conversion. Units are pixels.
function
void setDisparityToDepthUseSpecTranslation(bool specTranslation)
Use baseline information for disparity to depth conversion from specs (design data) or from calibration. Default: true
function
void setRectificationUseSpecTranslation(bool specTranslation)
Obtain rectification matrices using spec translation (design data) or from calibration in calculations. Should be used only for debugging. Default: false
function
void setDepthAlignmentUseSpecTranslation(bool specTranslation)
Use baseline information for depth alignment from specs (design data) or from calibration. Default: true
function
void setAlphaScaling(float alpha)
Free scaling parameter between 0 (when all the pixels in the undistorted image are valid) and 1 (when all the source image pixels are retained in the undistorted image). On some high distortion lenses, and/or due to rectification (image rotated) invalid areas may appear even with alpha=0, in these cases alpha < 0.0 helps removing invalid areas. See getOptimalNewCameraMatrix from opencv for more details.
enum

std::uint32_t PresetMode

Preset modes for stereo depth.
enumerator
FAST_ACCURACY
enumerator
FAST_DENSITY
enumerator
DEFAULT
enumerator
FACE
enumerator
HIGH_DETAIL
enumerator
ROBOTICS
enumerator
DENSITY
enumerator
ACCURACY
enum

dai::StereoDepthConfig::MedianFilter MedianFilter

class

dai::StereoDepthConfig

#include StereoDepthConfig.hpp
variable
AlgorithmControl algorithmControl
Controls the flow of stereo algorithm - left-right check, subpixel etc.
variable
PostProcessing postProcessing
Controls the postprocessing of disparity and/or depth map.
variable
CensusTransform censusTransform
Census transform settings.
variable
CostMatching costMatching
Cost matching settings.
variable
CostAggregation costAggregation
Cost aggregation settings.
variable
ConfidenceMetrics confidenceMetrics
Confidence metrics settings.
variable
dai::ProcessorType filtersBackend
function
StereoDepthConfig()
Construct StereoDepthConfig message.
function
~StereoDepthConfig()
function
StereoDepthConfig & setDepthAlign(AlgorithmControl::DepthAlign align)
Parameters
  • align: Set the disparity/depth alignment: centered (between the 'left' and 'right' inputs), or from the perspective of a rectified output stream
function
StereoDepthConfig & setConfidenceThreshold(int confThr)
Confidence threshold for disparity calculation
Parameters
  • confThr: Confidence threshold value 0..255
function
int getConfidenceThreshold()
Get confidence threshold for disparity calculation
function
StereoDepthConfig & setMedianFilter(MedianFilter median)
Parameters
  • median: Set kernel size for disparity/depth median filtering, or disable
function
MedianFilter getMedianFilter()
Get median filter setting
function
StereoDepthConfig & setBilateralFilterSigma(uint16_t sigma)
A larger value of the parameter means that farther colors within the pixel neighborhood will be mixed together, resulting in larger areas of semi-equal color.
Parameters
  • sigma: Set sigma value for 5x5 bilateral filter. 0..65535
function
uint16_t getBilateralFilterSigma()
Get sigma value for 5x5 bilateral filter
function
StereoDepthConfig & setLeftRightCheckThreshold(int threshold)
Parameters
  • threshold: Set threshold for left-right, right-left disparity map combine, 0..255
function
int getLeftRightCheckThreshold()
Get threshold for left-right check combine
function
StereoDepthConfig & setLeftRightCheck(bool enable)
Computes and combines disparities in both L-R and R-L directions, and combine them.For better occlusion handling, discarding invalid disparity values
function
bool getLeftRightCheck()
Get left-right check setting
function
StereoDepthConfig & setExtendedDisparity(bool enable)
Disparity range increased from 95 to 190, combined from full resolution and downscaled images. Suitable for short range objects
function
bool getExtendedDisparity()
Get extended disparity setting
function
StereoDepthConfig & setSubpixel(bool enable)
Computes disparity with sub-pixel interpolation (3 fractional bits by default).Suitable for long range. Currently incompatible with extended disparity
function
bool getSubpixel()
Get subpixel setting
function
StereoDepthConfig & setSubpixelFractionalBits(int subpixelFractionalBits)
Number of fractional bits for subpixel mode. Default value: 3. Valid values: 3,4,5. Defines the number of fractional disparities: 2^x. Median filter postprocessing is supported only for 3 fractional bits.
function
int getSubpixelFractionalBits()
Get number of fractional bits for subpixel mode
function
StereoDepthConfig & setDepthUnit(AlgorithmControl::DepthUnit depthUnit)
Set depth unit of depth map.Meter, centimeter, millimeter, inch, foot or custom unit is available.
function
AlgorithmControl::DepthUnit getDepthUnit()
Get depth unit of depth map.
function
StereoDepthConfig & setCustomDepthUnitMultiplier(float multiplier)
Set custom depth unit multiplier relative to 1 meter.
function
float getCustomDepthUnitMultiplier()
Get custom depth unit multiplier relative to 1 meter.
function
StereoDepthConfig & setDisparityShift(int disparityShift)
Shift input frame by a number of pixels to increase minimum depth. For example shifting by 48 will change effective disparity search range from (0,95] to [48,143]. An alternative approach to reducing the minZ. We normally only recommend doing this when it is known that there will be no objects farther away than MaxZ, such as having a depth camera mounted above a table pointing down at the table surface.
function
StereoDepthConfig & setNumInvalidateEdgePixels(int32_t numInvalidateEdgePixels)
Invalidate X amount of pixels at the edge of disparity frame. For right and center alignment X pixels will be invalidated from the right edge, for left alignment from the left edge.
function
StereoDepthConfig & setFiltersComputeBackend(dai::ProcessorType filtersBackend)
Set filters compute backend
function
dai::ProcessorType getFiltersComputeBackend()
Get filters compute backend
function
float getMaxDisparity()
Useful for normalization of the disparity map.
Returns
Maximum disparity value that the node can return
function
void serialize(std::vector< std::uint8_t > & metadata, DatatypeEnum & datatype)
inline function
DatatypeEnum getDatatype()
function
struct

dai::StereoDepthConfig::AlgorithmControl

variable
DepthAlign depthAlign
Set the disparity/depth alignment to the perspective of a rectified output, or center it
variable
DepthUnit depthUnit
Measurement unit for depth data. Depth data is integer value, multiple of depth unit.
variable
float customDepthUnitMultiplier
Custom depth unit multiplier, if custom depth unit is enabled, relative to 1 meter. A multiplier of 1000 effectively means depth unit in millimeter.
variable
bool enableLeftRightCheck
Computes and combines disparities in both L-R and R-L directions, and combine them. For better occlusion handling
variable
bool enableSwLeftRightCheck
Enables software left right check. Applicable to RVC4 only.
variable
bool enableExtended
Disparity range increased from 95 to 190, combined from full resolution and downscaled images. Suitable for short range objects
variable
bool enableSubpixel
Computes disparity with sub-pixel interpolation (5 fractional bits), suitable for long range
variable
std::int32_t leftRightCheckThreshold
Left-right check threshold for left-right, right-left disparity map combine, 0..128 Used only when left-right check mode is enabled. Defines the maximum difference between the confidence of pixels from left-right and right-left confidence maps
variable
std::int32_t subpixelFractionalBits
Number of fractional bits for subpixel modeValid values: 3,4,5Defines the number of fractional disparities: 2^xMedian filter postprocessing is supported only for 3 fractional bits
variable
std::int32_t disparityShift
Shift input frame by a number of pixels to increase minimum depth. For example shifting by 48 will change effective disparity search range from (0,95] to [48,143]. An alternative approach to reducing the minZ. We normally only recommend doing this when it is known that there will be no objects farther away than MaxZ, such as having a depth camera mounted above a table pointing down at the table surface.
variable
std::optional< float > centerAlignmentShiftFactor
variable
std::int32_t numInvalidateEdgePixels
Invalidate X amount of pixels at the edge of disparity frame. For right and center alignment X pixels will be invalidated from the right edge, for left alignment from the left edge.
function
enum

int32_t DepthAlign

Align the disparity/depth to the perspective of a rectified output, or center it
enumerator
AUTO
enumerator
RECTIFIED_RIGHT
enumerator
RECTIFIED_LEFT
enumerator
CENTER
enumerator
RIGHT
enumerator
LEFT
enum

dai::DepthUnit DepthUnit

struct

dai::StereoDepthConfig::CensusTransform

#include StereoDepthConfig.hpp
variable
KernelSize kernelSize
Census transform kernel size.
variable
uint64_t kernelMask
Census transform mask, default - auto, mask is set based on resolution and kernel size. Disabled for 400p input resolution. Enabled for 720p. 0XA82415 for 5x5 census transform kernel. 0XAA02A8154055 for 7x7 census transform kernel. 0X2AA00AA805540155 for 7x9 census transform kernel. Empirical values.
variable
bool enableMeanMode
If enabled, each pixel in the window is compared with the mean window value instead of the central pixel.
variable
uint32_t threshold
Census transform comparison threshold value.
variable
int8_t noiseThresholdOffset
Used to reduce small fixed levels of noise across all luminance values in the current image. Valid range is [0,127]. Default value is 0.
variable
int8_t noiseThresholdScale
Used to reduce noise values that increase with luminance in the current image. Valid range is [-128,127]. Default value is 0.
function
enum

std::int32_t KernelSize

Census transform kernel size possible values.
enumerator
AUTO
enumerator
KERNEL_5x5
enumerator
KERNEL_7x7
enumerator
KERNEL_7x9
struct

dai::StereoDepthConfig::ConfidenceMetrics

variable
uint8_t occlusionConfidenceWeight
Weight used with occlusion estimation to generate final confidence map. Valid range is [0,32]
variable
uint8_t motionVectorConfidenceWeight
Weight used with local neighborhood motion vector variance estimation to generate final confidence map. Valid range is [0,32].
variable
uint8_t motionVectorConfidenceThreshold
Threshold offset for MV variance in confidence generation. A value of 0 allows most variance. Valid range is [0,3].
variable
uint8_t flatnessConfidenceWeight
Weight used with flatness estimation to generate final confidence map. Valid range is [0,32].
variable
uint8_t flatnessConfidenceThreshold
Threshold for flatness check in SGM block. Valid range is [1,7].
variable
bool flatnessOverride
Flag to indicate whether final confidence value will be overidden by flatness value. Valid range is {true,false}.
function
struct

dai::StereoDepthConfig::CostAggregation

#include StereoDepthConfig.hpp
variable
uint8_t divisionFactor
Cost calculation linear equation parameters.
variable
uint16_t horizontalPenaltyCostP1
Horizontal P1 penalty cost parameter.
variable
uint16_t horizontalPenaltyCostP2
Horizontal P2 penalty cost parameter.
variable
uint16_t verticalPenaltyCostP1
Vertical P1 penalty cost parameter.
variable
uint16_t verticalPenaltyCostP2
Vertical P2 penalty cost parameter.
variable
P1Config p1Config
variable
P2Config p2Config
function
struct

dai::StereoDepthConfig::CostAggregation::P1Config

#include StereoDepthConfig.hpp
variable
bool enableAdaptive
Used to disable/enable adaptive penalty.
variable
uint8_t defaultValue
Used as the default penalty value when nAdapEnable is disabled. A bigger value enforces higher smoothness and reduced noise at the cost of lower edge accuracy. This value must be smaller than P2 default penalty. Valid range is [10,50].
variable
uint8_t edgeValue
Penalty value on edges when nAdapEnable is enabled. A smaller penalty value permits higher change in disparity. This value must be smaller than or equal to P2 edge penalty. Valid range is [10,50].
variable
uint8_t smoothValue
Penalty value on low texture regions when nAdapEnable is enabled. A smaller penalty value permits higher change in disparity. This value must be smaller than or equal to P2 smoothness penalty. Valid range is [10,50].
variable
uint8_t edgeThreshold
Threshold value on edges when nAdapEnable is enabled. A bigger value permits higher neighboring feature dissimilarity tolerance. This value is shared with P2 penalty configuration. Valid range is [8,16].
variable
uint8_t smoothThreshold
Threshold value on low texture regions when nAdapEnable is enabled. A bigger value permits higher neighboring feature dissimilarity tolerance. This value is shared with P2 penalty configuration. Valid range is [2,12].
function
struct

dai::StereoDepthConfig::CostAggregation::P2Config

#include StereoDepthConfig.hpp
variable
bool enableAdaptive
Used to disable/enable adaptive penalty.
variable
uint8_t defaultValue
Used as the default penalty value when nAdapEnable is disabled. A bigger value enforces higher smoothness and reduced noise at the cost of lower edge accuracy. This value must be larger than P1 default penalty. Valid range is [20,100].
variable
uint8_t edgeValue
Penalty value on edges when nAdapEnable is enabled. A smaller penalty value permits higher change in disparity. This value must be larger than or equal to P1 edge penalty. Valid range is [20,100].
variable
uint8_t smoothValue
Penalty value on low texture regions when nAdapEnable is enabled. A smaller penalty value permits higher change in disparity. This value must be larger than or equal to P1 smoothness penalty. Valid range is [20,100].
function
struct

dai::StereoDepthConfig::CostMatching

#include StereoDepthConfig.hpp
variable
DisparityWidth disparityWidth
Disparity search range, default 96 pixels.
variable
bool enableCompanding
Disparity companding using sparse matching. Matching pixel by pixel for N disparities. Matching every 2nd pixel for M disparitites. Matching every 4th pixel for T disparities. In case of 96 disparities: N=48, M=32, T=16. This way the search range is extended to 176 disparities, by sparse matching. Note: when enabling this flag only depth map will be affected, disparity map is not.
variable
uint8_t invalidDisparityValue
Used only for debug purposes, SW postprocessing handled only invalid value of 0 properly.
variable
uint8_t confidenceThreshold
Disparities with confidence value over this threshold are accepted.
variable
bool enableSwConfidenceThresholding
Enable software confidence thresholding. Applicable to RVC4 only.
variable
LinearEquationParameters linearEquationParameters
Cost calculation linear equation parameters.
function
struct

dai::StereoDepthConfig::CostMatching::LinearEquationParameters

#include StereoDepthConfig.hpp
variable
uint8_t alpha
variable
uint8_t beta
variable
uint8_t threshold
function
DEPTHAI_SERIALIZE(LinearEquationParameters, alpha, beta, threshold)
enum

std::uint32_t DisparityWidth

Disparity search range: 64 or 96 pixels are supported by the HW.
enumerator
DISPARITY_64
enumerator
DISPARITY_96
struct

dai::StereoDepthConfig::PostProcessing

#include StereoDepthConfig.hpp
variable
std::array< Filter, 5 > filteringOrder
Order of filters to be applied if filtering is enabled.
variable
MedianFilter median
Set kernel size for disparity/depth median filtering, or disable
variable
std::int16_t bilateralSigmaValue
Sigma value for bilateral filter. 0 means disabled. A larger value of the parameter means that farther colors within the pixel neighborhood will be mixed together.
variable
SpatialFilter spatialFilter
Edge-preserving filtering: This type of filter will smooth the depth noise while attempting to preserve edges.
variable
TemporalFilter temporalFilter
Temporal filtering with optional persistence.
variable
ThresholdFilter thresholdFilter
Threshold filtering. Filters out distances outside of a given interval.
variable
BrightnessFilter brightnessFilter
Brightness filtering. If input frame pixel is too dark or too bright, disparity will be invalidated. The idea is that for too dark/too bright pixels we have low confidence, since that area was under/over exposed and details were lost.
variable
SpeckleFilter speckleFilter
Speckle filtering. Removes speckle noise.
variable
DecimationFilter decimationFilter
Decimation filter. Reduces disparity/depth map x/y complexity, reducing runtime complexity for other filters.
variable
HoleFilling holeFilling
variable
AdaptiveMedianFilter adaptiveMedianFilter
function
struct

dai::StereoDepthConfig::PostProcessing::AdaptiveMedianFilter

variable
bool enable
Flag to enable adaptive median filtering for a final pass of filtering on low confidence pixels.
variable
uint8_t confidenceThreshold
Confidence threshold for adaptive median filtering. Should be less than nFillConfThresh value used in evaDfsHoleFillConfig. Valid range is [0,255].
function
struct

dai::StereoDepthConfig::PostProcessing::BrightnessFilter

#include StereoDepthConfig.hpp
variable
std::int32_t minBrightness
Minimum pixel brightness. If input pixel is less or equal than this value the depth value is invalidated.
variable
std::int32_t maxBrightness
Maximum range in depth units. If input pixel is less or equal than this value the depth value is invalidated.
function
struct

dai::StereoDepthConfig::PostProcessing::DecimationFilter

#include StereoDepthConfig.hpp
variable
std::uint32_t decimationFactor
Decimation factor. Valid values are 1,2,3,4. Disparity/depth map x/y resolution will be decimated with this value.
variable
DecimationMode decimationMode
Decimation algorithm type.
function
enum

int32_t DecimationMode

Decimation algorithm type.
enumerator
PIXEL_SKIPPING
enumerator
NON_ZERO_MEDIAN
enumerator
NON_ZERO_MEAN
struct

dai::StereoDepthConfig::PostProcessing::HoleFilling

variable
bool enable
Flag to enable post-processing hole-filling.
variable
uint8_t highConfidenceThreshold
Pixels with confidence higher than this value are used to calculate an average disparity per superpixel. Valid range is [1,255]
variable
uint8_t fillConfidenceThreshold
Pixels with confidence below this value will be filled with the average disparity of their corresponding superpixel. Valid range is [1,255].
variable
uint8_t minValidDisparity
Represents the required percentange of pixels with confidence value above nHighConfThresh that are used to calculate average disparity per superpixel, where 1 means 50% or half, 2 means 25% or a quarter and 3 means 12.5% or an eighth. If the required number of pixels are not found, the holes will not be filled.
variable
bool invalidateDisparities
If enabled, sets to 0 the disparity of pixels with confidence below nFillConfThresh, which did not pass nMinValidPixels criteria. Valid range is {true, false}.
function
enum

int32_t Filter

enumerator
NONE
enumerator
DECIMATION
enumerator
SPECKLE
enumerator
MEDIAN
enumerator
SPATIAL
enumerator
TEMPORAL
enumerator
FILTER_COUNT
enum

enum

enum

enum

enum

filters::params::MedianFilter MedianFilter

需要帮助？

请前往 OAKChina 官网 获取技术支持或解答您的任何疑问。
